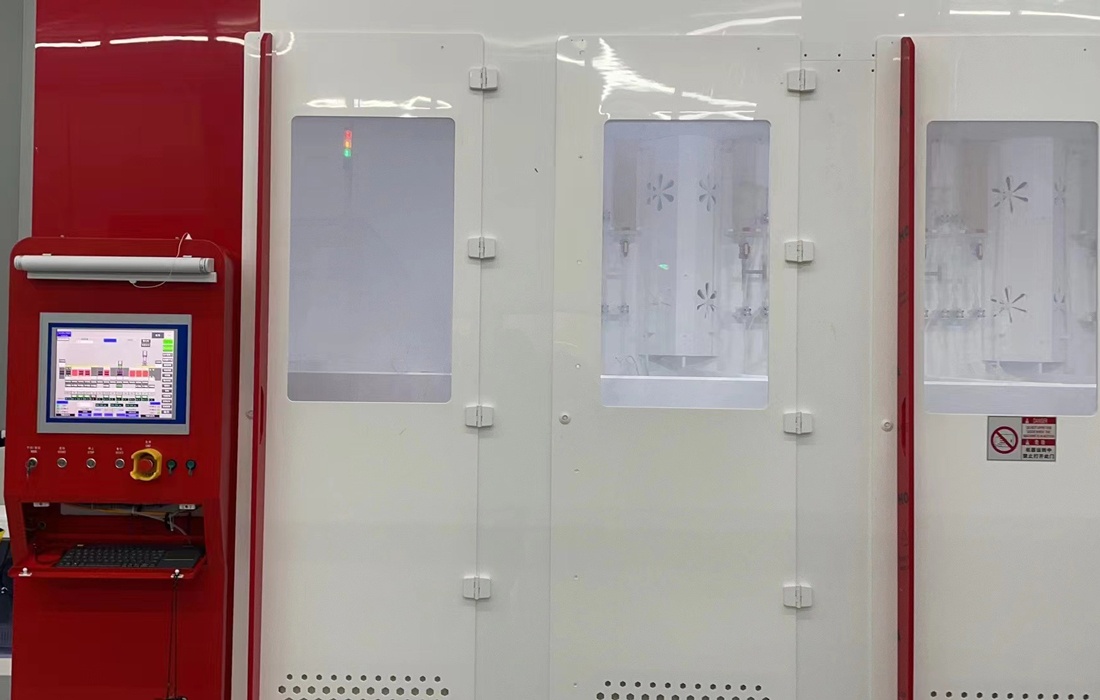

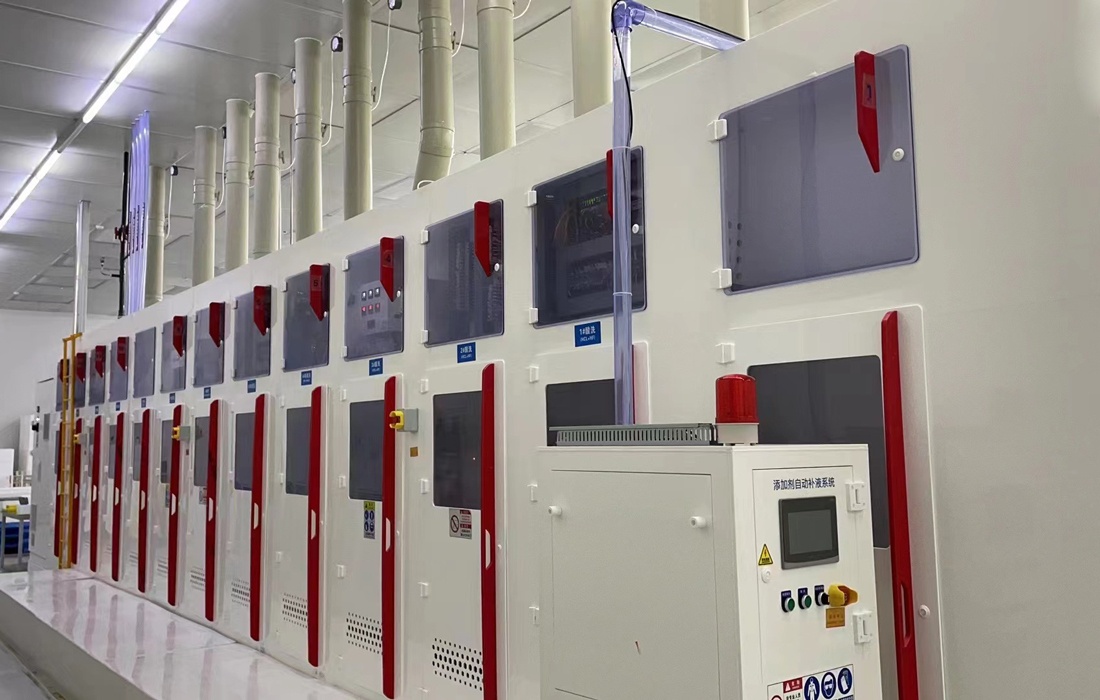

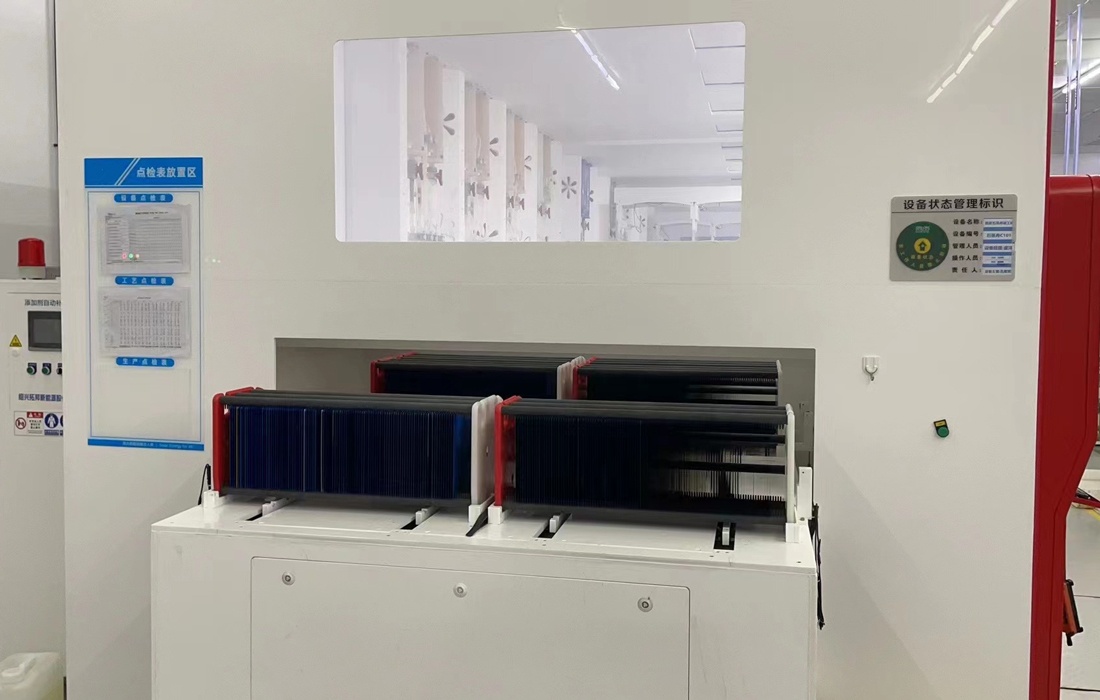

Rework Equipment
Product Name: Rework Equipment
Function: Used for the rework cleaning treatment of abnormal silicon wafers generated in each process of battery production.
Process Flow: Pickling→Alkali Washing→Post-cleaning→Pickling→Pre-dehydration→Drying
Features: Compatible with both alkaline and acidic rework wafer cleaning process routes; one-key online washing and solution replacement for simple and quick fluid exchange; process tank circulation volume adjustable according to process requirements; cost-effective.
|
Product Name |
Rework Equipment |
|
Model |
KSFGPOXJ |
|
Route Application |
TOPCON, PERC, HIT, XBC, Stacked Batteries, etc. |
|
Function |
Used for the rework cleaning treatment of abnormal silicon wafers generated in each process of battery production. |
|
Process Flow |
Pickling→Alkali Washing→Post-cleaning→Pickling→Pre-dehydration→Drying |
|
Compatible Wafer |
182x182mm, compatible with various sizes of 18X-230 silicon wafers |
|
Capacity |
4000 pcs/hour (Capacity can be customized based on requirements) |
|
Breakage Rate |
Breakage rate <0.01% (Silicon wafer thickness ≥130um) |
|
Power Consumption/ Voltage |
50KW380V 50Hz 3-phase 5-wire system |
|
Features |
Compatible with both alkaline and acidic rework wafer cleaning process routes; one-key online washing and solution replacement for simple and quick fluid exchange; process tank circulation volume adjustable according to process requirements; cost-effective. |
